TiCN is a blue-grey PVD tool coating with about 3000 HV hardness and lower friction than TiN.

CNC machiningSheet metalHigh cost $$$$Conductive
Quote a part with TiCN PVDCompare pvd hard coatings

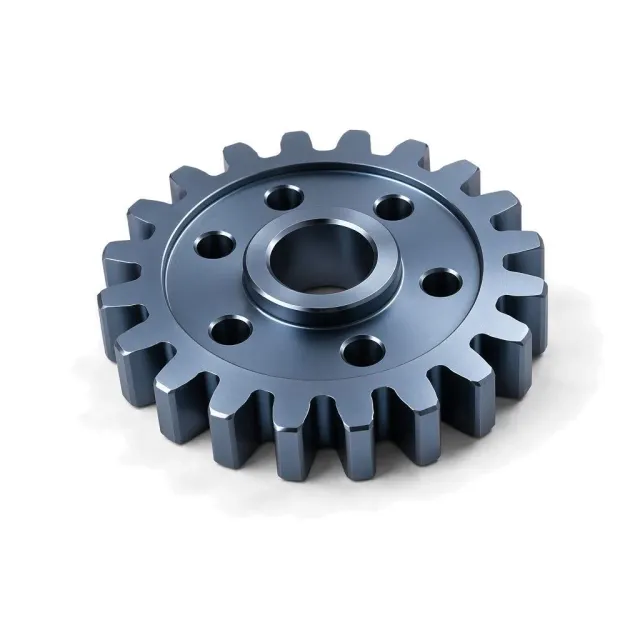

Titanium Carbonitride PVD on a machined part

What is TiCN PVD?

It is selected for abrasive cutting, punches, forming dies, and sliding wear.

How it works

Reactive arc or sputter deposition combines titanium with carbon- and nitrogen-bearing gases on an electrically conductive, hardened substrate. The carbon raises hardness and lowers friction relative to TiN, but reduces oxidation resistance. Typical deposition is within the 200–500 °C PVD range, and the selected cycle must remain below the substrate tempering or aging limit.

Why specify it

  • About 3000 HV hardness
  • Coefficient of friction commonly 0.2–0.4
  • 1–5 µm dimensional film
  • Excellent abrasive-wear resistance

Where it falls short

  • About 400 °C practical oxidation limit
  • Not ideal for hot dry machining
  • Needs a hard conductive substrate
  • Aluminum requires low-temperature qualification

TiCN PVD at a glance

TiCN PVD is strongest on surface hardness (92 of 100), at a high cost.

Corrosion protectionFair40 / 100
Surface hardnessExcellent92 / 100
Cosmetic qualityGood55 / 100
LubricityGood62 / 100
Relative costHigh76 / 100
CorrosionHardnessCosmeticLubricityEconomy

Each score is 0–100 against every finish in this catalog. Corrosion comes from salt-spray life (ASTM B117, log scale) and hardness from the finish layer's Vickers or pencil hardness; cosmetic, lubricity and cost are FabDigit's engineering assessment. Economy on the radar is the inverse of cost.

TiCN PVD key numbers

Typical values from the governing specifications and shop practice; bars are this finish against the highest value among pvd hard coatings finishes.

Thickness1–5 µm0.04–0.2 mil
Hardness2,800–3,200 HV
Max service temp.400 °C752 °F
Thickness
2–4 µm
Hardness
2,800–3,200 HV — Approximately 3000 HV is typical.
Electrical
Conductive
Colours
  • blue-grey
  • grey
Appearance
Blue-grey to charcoal with a smooth metallic-ceramic sheen.

Where TiCN PVD sits among all finishes

Surface hardness (Vickers, log scale) against corrosion protection (salt-spray hours, log scale) for every coating FabDigit offers, one cloud per finish group. TiCN PVD is highlighted; hover a dot for its name or open the full map.
