Formlabs Nylon 12 GF Powder (PA12, SLS)
Formlabs · SLS powder

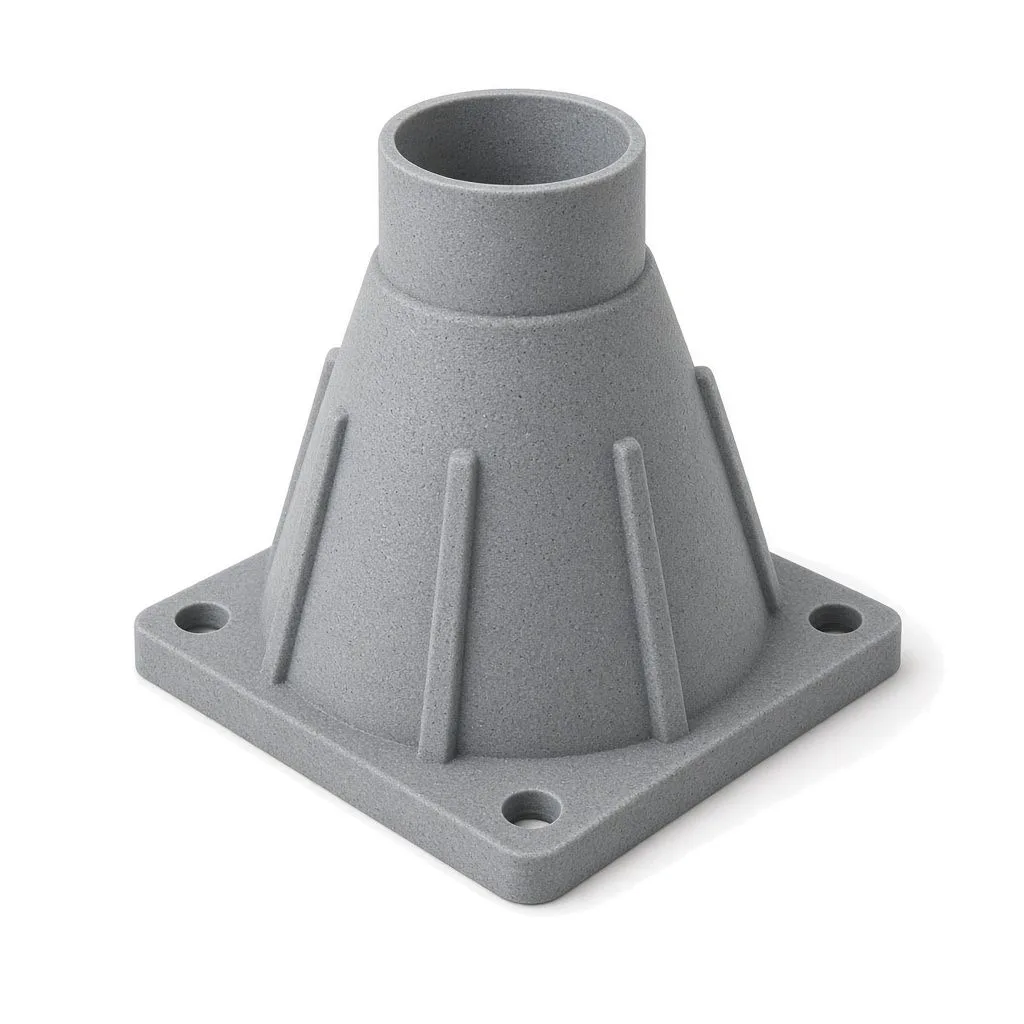

A glass-filled PA12 powder for rigid, dimensionally stable parts under sustained loading and elevated temperatures.
Formlabs datasheet values, printed parts
Other PA12 grades and fills
Compare the PA12 products and conditions in the library; see the grade overview at PA12.
- HP PA 12 GB
- Farsoon FS3300PA-F
- Formlabs Nylon 12 GF
- Sinterit PA12 Smooth
- FR
- ESD
- Formlabs Nylon 12 Tough
- Evonik INFINAM PA 12 (VESTOSINT)
- Farsoon FS3401GB
- HP PA 12 S
- AL
- HP PA 12 FR
- Farsoon FS3300PA
- EOS PA 2210 FR
- Formlabs Nylon 12 White
- EOS Alumide
- HP PA 12
- EOS PA 2200
- EOS PA 2201
- EOS PA 2220 HighReuse
- EOS PA 2200 CarbonReduced
- ALM PA 640-GSL
- HP PA 12 W
- EOS PrimePart FR (PA 2241 FR)
- Formlabs Nylon 12
- EOS PA 3200 GF
- CF
Compare all 27 grades and fillsHide
| Grade · open for datasheet | Best for | Yield MPa | Tensile MPa | Elong. % | Hardness |
|---|---|---|---|---|---|
HP 3D High Reusability PA 12 GB · MJF powder | A 40% glass-bead-filled PA 12 for stiff, dimensionally stable parts with fine detail and repeatability. | — | 29 | 10 | — |
SLS powder | — | — | 36 | 5 | — |
Formlabs Nylon 12 GFThis page Formlabs Nylon 12 GF Powder · SLS powder | A glass-filled PA12 powder for rigid, dimensionally stable parts under sustained loading and elevated temperatures. | — | 38 | 4 | — |
SLS powder | — | — | 38 | 4.6 | 76 Shore D |
Flame-retardant PA12 | Use for aircraft interiors, rail and electrical enclosures where V-0 / FAR 25.853 burn compliance is mandatory; slightly lower toughness. | 40 | 44 | 6 | 78 Shore D |
Electrically conductive / static-dissipative PA12 | Choose for electronics handling trays, fixtures and fuel-system parts needing controlled surface resistivity (10⁶–10⁹ Ω). | 41 | 45 | 7 | 78 Shore D |
Formlabs Nylon 12 Tough Powder · SLS powder | A ductile PA12 powder for accurate, impact-resistant parts with reduced warpage and economical powder reuse. | — | 42 | 25 | — |
SLS powder | — | 43 | 49 | 311 | 75 Shore D |
SLS powder | — | — | 44 | 9.3 | — |
HP 3D High Reusability PA 12 S (enabled by Arkema) · MJF powder | A high-reuse PA 12 grade for smooth surfaces, fine detail, and cost-efficient aesthetic production parts. | — | 45 | 12 | — |
Aluminium-filled PA12 | Metallic-look, stiff, easily tumbled/polished parts for tooling aids and design models; better heat conduction, low elongation. | — | 46 | 4 | 80 Shore D |
HP 3D High Reusability PA 12 FR (enabled by Evonik) · MJF powder | A halogen-free flame-retardant PA 12 with a smooth finish for safety-critical housings and production components. | — | 46 | 4.7 | — |
SLS powder | — | — | 46 | 36 | — |
SLS powder | — | — | 46 | 4 | — |
Formlabs Nylon 12 White Powder · SLS powder | A white, dyeable PA12 powder for high-contrast prototypes, medical models, and customer-facing end-use parts. | — | 47 | 8 | — |
SLS powder | — | — | 48 | 4 | 76 Shore D |
HP 3D High Reusability PA 12 (enabled by Evonik) · MJF powder | HP's flagship MJF nylon balances strength, ductility, detail, and powder efficiency for functional production parts. | — | 48 | 20 | — |
SLS powder | — | — | 48 | 18 | 75 Shore D |
SLS powder | — | — | 48 | 15 | 75 Shore D |
SLS powder | — | — | 48 | 10 | — |
SLS powder | — | — | 48 | 18 | — |
SLS powder | — | — | 49 | 3 | — |
HP 3D High Reusability PA 12 W · MJF powder | A white engineering PA 12 for strong functional parts that can remain white or take vibrant color finishes. | — | 49 | 17 | — |
SLS powder | — | — | 49 | 15 | — |
Formlabs Nylon 12 Powder · SLS powder | A versatile, biocompatible PA12 powder for dimensionally accurate functional prototypes and durable end-use parts. | — | 50 | 11 | — |
SLS powder | — | — | 51 | 9 | 80 Shore D |
Carbon-fibre reinforced PA12 | Highest stiffness-to-weight powder-bed nylon — for lightweight brackets, drone and motorsport parts; strongly anisotropic and brittle. | — | 72 | 4 | 83 Shore D |
What is Formlabs Nylon 12 GF Powder?
Formlabs Nylon 12 GF Powder is Formlabs' PA12 (GF-filled) powder for Selective Laser Sintering on Fuse 1+ 30W, Fuse 1 — a glass-filled PA12 powder for rigid, dimensionally stable parts under sustained loading and elevated temperatures. Formlabs Nylon 12 GF Powder has a tensile strength of 38 MPa (5.51 ksi), weaker than 56% of polymer grades. Elongation at break is 4% and the elastic modulus is 2.8 GPa (0.406 Msi). Pick Formlabs in the Powder row when quoting PA12 and the part is printed from this powder.
Limitations
- Limited ductility — 4%, worse than 78% of polymer grades
About this powder
“Nylon 12 GF Powder is a glass-filled, biocompatible material with enhanced stiffness and heat resistance for demanding industrial environments. Choose this material to produce stiff functional prototypes or end-use parts for applications where structural rigidity and thermal stability are critical.” — Formlabs, product description
- Manufacturer
- Formlabs
- Product
- Nylon 12 GF Powder
- Base polymer
- PA12 — glass filled
- Process
- Selective Laser Sintering (SLS)
- Printers
- Fuse 1+ 30W, Fuse 1
- As-printed colour
- Gray — Formlabs lists the as-printed colour as Grey; dyeing options depend on the base colour and grade
- Build envelope
- 165 × 165 × 300 mm. Usable part size depends on orientation, spacing and process allowances.
- Build atmosphere
- No mandatory inert atmosphere recorded; follow the selected printer/material profile.
- Powder refresh
- 50 % fresh powder in the recorded recipe. Follow the manufacturer’s build and powder-management conditions.
- Formlabs categories
- High Stiffness · Temperature Resistant
- Reported material classifications
- Skin Contact · Mucosal Membrane Contact · ISO 10993-5 · ISO 10993-10 · UL 94 HB. Scope and test conditions apply; these do not certify the finished part or assembly.
- Manufacturer data source
- Formlabs source reference (Rev 01 2022-02-01)
- FabDigit material reference
- Download reference PDF — FabDigit layout with Formlabs data and source attribution.
- Ordering
- Select it in the Powder row when quoting PA12. The quote confirms the selected material and process.
Formlabs positions it for manufacturing aids, rapid tooling, end-use parts, rapid prototyping, fixtures under long-term sustained loading, thermally stressed housings and stiff structural components.
Choosing Nylon 12 GF Powder
Glass-filled Formlabs PA12 for stiff, dimensionally stable SLS parts exposed to sustained loads or elevated temperature.
- Consider it for
- Rigid manufacturing fixtures and tooling · Thermally stressed housings · Low-strain structural components
- Tradeoffs
- Glass filling raises stiffness and heat resistance while leaving little elongation for snaps or notch-sensitive features. The reinforcement is dispersed glass filler, not continuous fibre.
- Design and validation
- Use generous radii and avoid thin compliant tabs. Validate the loaded orientation and long-term creep case, and keep the choice within the published Fuse 1 or Fuse 1+ 30W workflow.
- Finishing
- Gray is the as-printed colour. Dye or coating availability can differ from unfilled PA12, so confirm the exact colour and adhesion route on a representative coupon.
- Before choosing
- Will stiffness, creep resistance or heat exposure govern the design? Would unfilled PA12 or Nylon 12 Tough better tolerate impact or repeated flexing?
Selection notes based on Formlabs Nylon 12 GF Powder product page · Formlabs Nylon 12 GF Powder TDS, Rev 01. Published test results depend on the stated printer, orientation and conditioning. Compare material families · Choose a finishing route.
Formlabs Nylon 12 GF Powder properties
Typical values for Formlabs Nylon 12 GF Powder (Rev 01 2022-02-01); review each property’s test condition. Only this product’s reported properties are shown; unreported properties are omitted. Bars are the position among polymer grades.
Mechanical6
Formlabs Nylon 12 GF Powder has a tensile strength of 38 MPa (5.51 ksi), weaker than 56% of polymer grades. Elongation at break is 4% and the elastic modulus is 2.8 GPa (0.406 Msi).
per ASTM D638-14 Type 1
per ASTM D638-14 Type 1
per ASTM D638-14 Type 1; X/Y 4 / Z 3
per ASTM D790-15
per ASTM D790-15
per ASTM D256-10
Thermal4
per ASTM D648-16
per ASTM D648-16
per ASTM D1525
3.00 mm
Physical1
per ASTM D570; printed part
Manufacturability1
per ISO 15512 Method D
Use published values for design screening. Confirm the grade, build direction, conditioning and available lot documentation when quoting.
Test basis and additional results
Read the values with the specimen preparation and test conditions that produced them.
- Manufacturer document
- 2201635-TDS-ENUS-0 · Rev 01 · 2022-02-01
- Specimen preparation
- Fuse 1; specimens conditioned at 23 °C and 50% relative humidity for 7 days before testing.
- Build direction
- Elongation is reported separately for X/Y (4%) and Z (3%). The other table values do not state an orientation.
Solvent compatibility screen
24 h immersion mass change reported by the manufacturer
| Solvent | 24 h weight gain |
|---|---|
| Acetic acid 5% | 0.2% |
| Acetone | 0.2% |
| Bleach (~5% NaOCl) | 0.2% |
| Butyl acetate | 0.2% |
| Diesel fuel | 0.6% |
| Diethyl glycol monomethyl ether | 0.5% |
| Hydraulic oil | 1.0% |
| Hydrogen peroxide (3%) | 0.2% |
| Isooctane (gasoline) | 0.0% |
| Isopropyl alcohol | 0.2% |
| Mineral oil (heavy) | 1.0% |
| Mineral oil (light) | 1.3% |
| Salt water (3.5% NaCl) | 0.2% |
| Skydrol 5 | 0.8% |
| Sodium hydroxide solution (0.025%, pH 10) | 0.2% |
| Strong acid (concentrated HCl) | 0.8% |
| Tripropylene glycol monomethyl ether | 0.8% |
| Water | 0.1% |
| Xylene | 0.2% |
TDS test article: 1 × 1 × 1 cm cube described as printed and post-cured. No SLS post-cure procedure is defined. This wording does not establish an SLS post-cure requirement. Weight change alone does not establish sealing, retained strength, or long-term chemical life.
Biocompatibility endpoint results
ISO 10993 endpoints listed in the manufacturer TDS
| Standard / endpoint | Result |
|---|---|
| ISO 10993-5:2009 | Not cytotoxic |
| ISO 10993-10:2010/(R)2014 — irritation | Not an irritant |
| ISO 10993-10:2010/(R)2014 — sensitization | Not a sensitizer |
Manufacturer material-sample result. It does not qualify a finished part or device for its intended use.
How to interpret this data
The TDS says properties may vary with part geometry, print orientation, and temperature.
The ASTM D570 water-absorption row does not state a 24-hour duration.
The solvent section says printed and post-cured but defines no SLS post-cure. This wording does not establish an SLS post-cure requirement.
The document names sustained loading as an application but publishes no creep curve or long-duration load value.
Formlabs Nylon 12 GF Powder — frequently asked
What is Formlabs Nylon 12 GF Powder used for?
Glass-filled Formlabs PA12 for stiff, dimensionally stable SLS parts exposed to sustained loads or elevated temperature. Consider it for rigid manufacturing fixtures and tooling, thermally stressed housings and low-strain structural components. Glass filling raises stiffness and heat resistance while leaving little elongation for snaps or notch-sensitive features. The reinforcement is dispersed glass filler, not continuous fibre.
What should I validate before using Formlabs Nylon 12 GF Powder?
Use generous radii and avoid thin compliant tabs. Validate the loaded orientation and long-term creep case, and keep the choice within the published Fuse 1 or Fuse 1+ 30W workflow. Will stiffness, creep resistance or heat exposure govern the design? Would unfilled PA12 or Nylon 12 Tough better tolerate impact or repeated flexing?
How can Formlabs Nylon 12 GF Powder be finished?
Gray is the as-printed colour. Dye or coating availability can differ from unfilled PA12, so confirm the exact colour and adhesion route on a representative coupon.
How should I interpret the published values for Formlabs Nylon 12 GF Powder?
Fuse 1; specimens conditioned at 23 °C and 50% relative humidity for 7 days before testing. Elongation is reported separately for X/Y (4%) and Z (3%). The other table values do not state an orientation. Read each value with the stated method, specimen preparation and conditioning.
Sources
Product values come from the selected manufacturer source and are normalised for comparison. Confirm the quoted process, build direction, conditioning and available lot documentation for the finished part.
