Lubrizol ESTANE 3D TPU M95A (TPU, MJF)
Lubrizol · MJF powder
A durable polyether TPU with high elasticity, abrasion resistance, energy rebound, and skin-contact suitability.
Lubrizol datasheet values, printed parts
Other TPU grades and fills
Compare the TPU products and conditions in the library; see the grade overview at TPU.
- Sinterit Flexa Gray
- EOS TPU 1301
- Formlabs TPU 90A
- Forward AM Ultrasint TPU01
- Sinterit Flexa Bright
- Lubrizol ESTANE 3D TPU M88A
- Lubrizol ESTANE 3D TPU M95A
- Shore D 60
- As Printed
- Shore A 70
- FR V-0
- ESD
- Aliphatic
- Ether
- Shore A 85
- Shore A 60 to Shore D 80
- Ester
- GF20
- Shore A 95
Compare all 19 grades and fillsHide
| Grade · open for datasheet | Best for | Yield MPa | Tensile MPa | Elong. % | Hardness |
|---|---|---|---|---|---|
SLS powder | — | — | 4 | 136 | 70 Shore A |
SLS powder | — | — | 7 | 250 | 86 Shore A |
Formlabs TPU 90A Powder · SLS powder | A tough, skin-safe TPU elastomer for flexible parts requiring high elongation, tear resistance, and everyday durability. | — | 9 | 310 | 90 Shore A |
MJF powder | A rubber-like TPU combining elasticity, rebound, fatigue resistance, and shock absorption for durable flexible parts. | — | 9 | 280 | 88 Shore A |
SLS powder | — | — | 10 | 318 | 79 Shore A |
MJF powder | A soft, durable TPU for complex flexible production parts and lattice structures with straightforward cold unpacking. | — | 15 | 440 | 88 Shore A |
Lubrizol ESTANE 3D TPU M95AThis page MJF powder | A durable polyether TPU with high elasticity, abrasion resistance, energy rebound, and skin-contact suitability. | — | 17 | 400 | 93 Shore A |
Rigid engineering TPU | Choose for stiff snap-fit housings, wheel cores, chain guides and cable strain relief that must still absorb impact at low temperature. | 25 | 55 | 320 | 60 Shore D |
FDM/FFF printed TPU filament (typ. 95A) | Use for printed flexible prototypes, gaskets and shoe midsoles; expect 60–80 % of injection-moulded strength and Z-direction weakness. | — | 28 | 380 | 45 Shore D |
Soft TPU | Pick for soft-touch overmoulds, flexible tubing, bellows and low-durometer seals. | — | 28 | 680 | 70 Shore A |
Halogen-free flame-retardant TPU | Specify for cable jackets, connectors and enclosures needing UL 94 V-0 at 1.5–3 mm; some loss of tear strength and elongation. | — | 28 | 400 | 40 Shore D |
ESD / antistatic conductive TPU | Use for antistatic hoses, conveyor parts and ESD-safe flexible components in electronics handling. | — | 30 | 350 | 42 Shore D |
Aliphatic (HDI/H12MDI) optically clear, non-yellowing TPU | Use for clear films, paint-protection film, safety-glass interlayers and light guides where non-yellowing UV stability is required. | — | 35 | 500 | 35 Shore D |
Polyether-based TPU | Choose for wet, humid or microbe-exposed service and for good low-temperature flexibility; slightly lower abrasion/oil performance than ester. | — | 38 | 600 | 34 Shore D |
Shore A 85Default Medium-soft general purpose TPU | Default all-round hardness for seals, cable jackets, wheels, grips and flexible parts. | — | 40 | 550 | 33 Shore D |
Shore A 60 | Use when the design tolerates any TPU hardness and the exact grade is chosen later by the moulder. | — | 40 | 500 | 40 Shore D |
Polyester-based TPU | Best abrasion, tear, oil and fuel resistance at lowest cost — avoid continuous hot/humid or immersed service (hydrolysis). | — | 45 | 520 | 38 Shore D |
20 % glass-fibre reinforced TPU | Use where a semi-rigid, dimensionally stable structural part with TPU toughness is needed (housings, wheel hubs, sports hardware). | — | 45 | 25 | 70 Shore D |
Hard elastomeric TPU | Pick for load-bearing rollers, couplings, ski boots, hose and abrasion-critical parts needing stiffness with flexibility. | — | 50 | 480 | 45 Shore D |
What is Lubrizol ESTANE 3D TPU M95A?
Lubrizol ESTANE 3D TPU M95A is Lubrizol's TPU powder for Multi Jet Fusion on HP Jet Fusion 4200 / 5200 / 5600 series — a durable polyether TPU with high elasticity, abrasion resistance, energy rebound, and skin-contact suitability. Lubrizol ESTANE 3D TPU M95A has a tensile strength of 17 MPa (2.47 ksi), weaker than 71% of polymer grades. Elongation at break is 400%. Lubrizol ESTANE 3D TPU M95A has a density of 1.1 g/cm³ (0.0397 lb/in³), lighter than 66% of polymer grades.
Advantages
- Ductile — tolerates forming and impact — 400%, better than 86% of polymer grades
About this powder
- Manufacturer
- Lubrizol
- Product
- ESTANE 3D TPU M95A
- Base polymer
- TPU
- Process
- Multi Jet Fusion (MJF)
- Printers
- HP Jet Fusion 4200 / 5200 / 5600 series
- As-printed colour
- White
- Build envelope
- 380 × 284 × 380 mm. Usable part size depends on orientation, spacing and process allowances.
- Build atmosphere
- No mandatory inert atmosphere recorded; follow the selected printer/material profile.
- Powder refresh
- 20 % fresh powder in the recorded recipe. Follow the manufacturer’s build and powder-management conditions.
- Reported material classifications
- ISO 10993-5 cytotoxicity · ISO 10993-10 skin sensitization. Scope and test conditions apply; these do not certify the finished part or assembly.
- Manufacturer data source
- Lubrizol source reference (March 2021)
- FabDigit material reference
- Download reference PDF — FabDigit layout with Lubrizol data and source attribution.
- Ordering
- Specify this powder in your quote notes for an availability review.

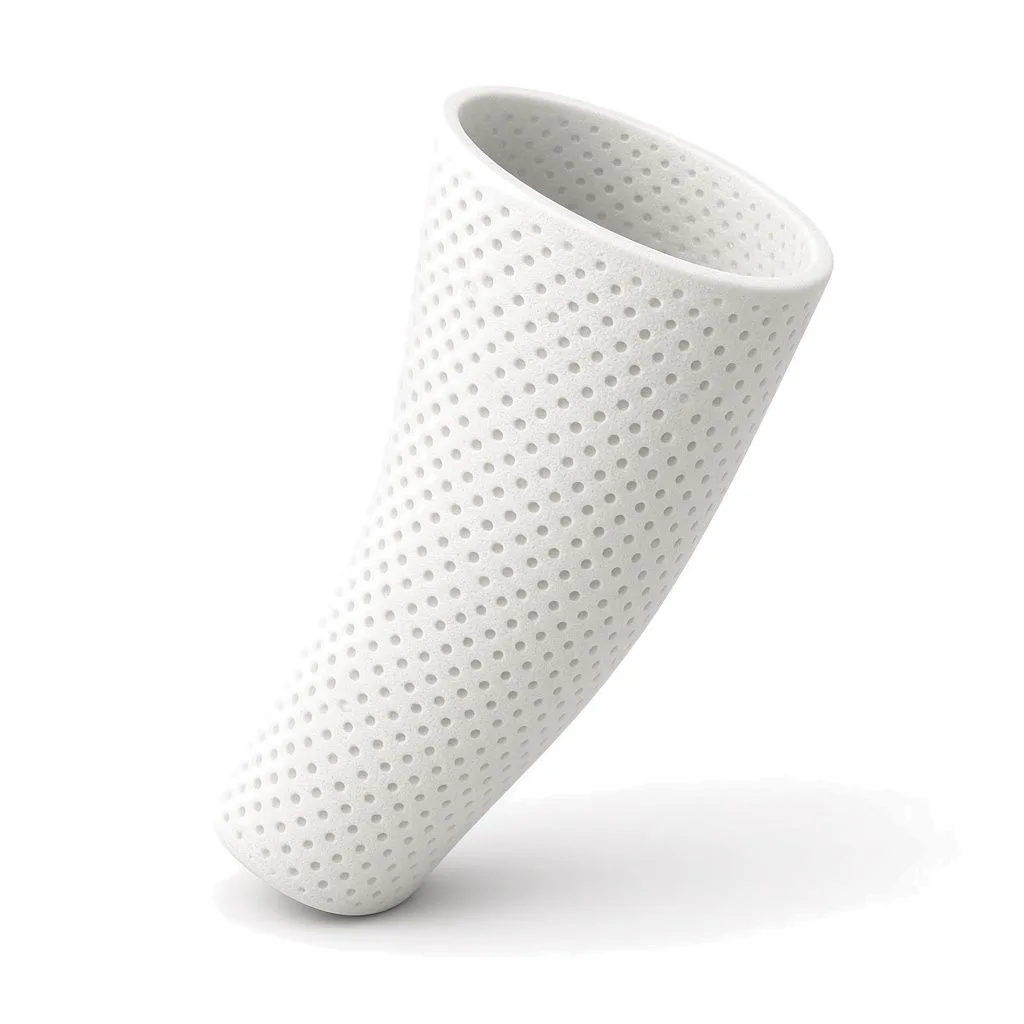

Lubrizol positions it for footwear, prosthetic and orthotic devices, wearables, automotive parts and flexible consumer products.
Choosing ESTANE 3D TPU M95A
A firmer polyether TPU for HP MJF parts that need abrasion resistance, elastic recovery and a Shore 95A-class feel.
- Consider it for
- Protective wearables and orthotic components · Flexible automotive or consumer parts · Lattice structures requiring a firmer response
- Tradeoffs
- Lubrizol's printed-part results vary sharply between X and Z and between fresh and reclaimed powder. Typical values are not a purchasing specification, and skin tests do not qualify a finished medical device.
- Design and validation
- Define orientation, bed fill, powder generation and cycle count in the qualification build. Test the actual lattice or wall because the maker says lattice response varies with design.
- Finishing
- White powder can yellow as it is reclaimed over more cycles. Confirm the accepted colour range and any separate coating or cleaning step without assuming that appearance changes leave flexible performance untouched.
- Before choosing
- Does the part need the firmer M95A response or the softer M88A grade? Will through-build loading or reclaimed-powder colour variation control acceptance?
Selection notes based on Lubrizol ESTANE 3D TPU M95A technical data sheet. Published test results depend on the stated printer, orientation and conditioning. Compare material families · Choose a finishing route.
Lubrizol ESTANE 3D TPU M95A properties
Typical values for Lubrizol ESTANE 3D TPU M95A (March 2021); review each property’s test condition. Only this product’s reported properties are shown; unreported properties are omitted. Bars are the position among polymer grades.
Physical2
Lubrizol ESTANE 3D TPU M95A has a density of 1.1 g/cm³ (0.0397 lb/in³), lighter than 66% of polymer grades.
per Lubrizol DSC
per ASTM D792; Printed-part specific gravity range 1.10–1.15
Mechanical4
Lubrizol ESTANE 3D TPU M95A has a tensile strength of 17 MPa (2.47 ksi), weaker than 71% of polymer grades. Elongation at break is 400%.
per DIN 53504 / ISO 37; Full print bed, fresh powder: XY 17 / Z 8
per DIN 53504 / ISO 37; Full print bed, fresh powder: XY 400 / Z 90
per ASTM D2240; Printed part, 93 ± 3
per ASTM D624; Die C, full print bed
Use published values for design screening. Confirm the grade, build direction, conditioning and available lot documentation when quoting.
Lubrizol ESTANE 3D TPU M95A — frequently asked
What is Lubrizol ESTANE 3D TPU M95A used for?
A firmer polyether TPU for HP MJF parts that need abrasion resistance, elastic recovery and a Shore 95A-class feel. Consider it for protective wearables and orthotic components, flexible automotive or consumer parts and lattice structures requiring a firmer response. Lubrizol's printed-part results vary sharply between X and Z and between fresh and reclaimed powder. Typical values are not a purchasing specification, and skin tests do not qualify a finished medical device.
What should I validate before using Lubrizol ESTANE 3D TPU M95A?
Define orientation, bed fill, powder generation and cycle count in the qualification build. Test the actual lattice or wall because the maker says lattice response varies with design. Does the part need the firmer M95A response or the softer M88A grade? Will through-build loading or reclaimed-powder colour variation control acceptance?
How can Lubrizol ESTANE 3D TPU M95A be finished?
White powder can yellow as it is reclaimed over more cycles. Confirm the accepted colour range and any separate coating or cleaning step without assuming that appearance changes leave flexible performance untouched.
Sources
Product values come from the selected manufacturer source and are normalised for comparison. Confirm the quoted process, build direction, conditioning and available lot documentation for the finished part.
