HP 3D High Reusability TPA (enabled by Evonik) (TPA (PEBA), MJF)
HP · MJF powder
A lightweight flexible polyamide elastomer with high rebound and uniform properties for resilient production parts.
HP datasheet values, printed parts
Other TPA (PEBA) grades and fills
Compare the TPA (PEBA) products and conditions in the library; see the grade overview at TPA (PEBA).
Compare all 13 grades and fillsHide
| Grade · open for datasheet | Best for | Yield MPa | Tensile MPa | Elong. % | Hardness |
|---|---|---|---|---|---|
E-TPA | Specify the expanded bead foam at 0.18 density for ultralight running midsoles and impact cushioning, where rebound typically exceeds E-TPU; modulus is only 0.004 GPa. | — | 2 | 130 | 40 Shore A |
SLS powder | — | — | 8 | 200 | 35 Shore D |
HP TPAThis page HP 3D High Reusability TPA (enabled by Evonik) · MJF powder | A lightweight flexible polyamide elastomer with high rebound and uniform properties for resilient production parts. | — | 10 | 250 | 91 Shore A |
Shore D 55 | Use the medium Shore D 55 level for structural elastic parts, ski boot liners and gear or coupling dampers that need 48 MPa tensile with 500 % elongation. | 15 | 48 | 500 | 55 Shore D |
Bio-based PEBA | Choose the bio-based version built on a castor-oil PA11 hard block for sustainable footwear and consumer goods; renewable carbon is high and mechanicals match standard Shore D 55 material. | 16 | 45 | 500 | 55 Shore D |
UNFDefault Unfilled / Natural | Use the unfilled natural grade as the default for injection molding and extrusion — Shore D 60 with 52 MPa tensile and 430 % elongation suits shoe midsoles, functional parts and tubing. | 20 | 52 | 430 | 60 Shore D |
Shore D 63 | Choose the stiff Shore D 63 level, 0.29 GPa modulus and 24 MPa yield, for high-stiffness resilient sheet and plates and sporting-goods spring elements; elongation drops to 400 %. | 24 | 55 | 400 | 63 Shore D |
Heat-stabilized grade | Use the heat-stabilized grade with its reinforced antioxidant package to improve retention of the polyether soft segment under long-term ageing at 80–100 °C, with service to 95 °C. | 24 | 52 | 360 | 63 Shore D |
Shore D 72 | Pick the hardest standard level — Shore D 72, 0.51 GPa modulus, 58 MPa tensile — for racing-shoe carbon-plate liners and high-stiffness elastic hinges; elongation is reduced to 350 %. | 31 | 58 | 350 | 72 Shore D |
Shore D 25 | Pick the softest level, Shore D 25 (≈75–80 Shore A) with 750 % elongation and 0.017 GPa modulus, for high-rebound cushioning, catheter soft tips and flexible films; service temp falls to 65 °C. | — | 34 | 750 | 25 Shore D |
Shore D 35 | Choose Shore D 35 for soft extrusion and blown film — medical tubing, breathable membranes and soft grips — where 700 % elongation matters more than the 70 °C temperature limit. | — | 38 | 700 | 35 Shore D |
Transparent / clear PEBA grade | Use the clear grade for sports eyewear nose pads, transparent upper components and soft-touch transparent overmolding at Shore D 40, 40 MPa tensile and 500 % elongation. | — | 40 | 500 | 40 Shore D |
Shore D 40 | Pick Shore D 40 when rebound and flexibility must be balanced, as in running midsoles, air-retention bladders and hoses; it gives 45 MPa tensile with 640 % elongation. | — | 45 | 640 | 40 Shore D |
What is HP 3D High Reusability TPA (enabled by Evonik)?
HP 3D High Reusability TPA (enabled by Evonik) is HP's TPA (PEBA) powder for Multi Jet Fusion on HP Jet Fusion 4200 series — a lightweight flexible polyamide elastomer with high rebound and uniform properties for resilient production parts. HP 3D High Reusability TPA (enabled by Evonik) has a tensile strength of 10 MPa (1.45 ksi), weaker than 79% of polymer grades. Elongation at break is 250% and the elastic modulus is 0.075 GPa (0.0109 Msi). HP 3D High Reusability TPA (enabled by Evonik) has a density of 1 g/cm³ (0.0361 lb/in³), lighter than 73% of polymer grades.
Advantages
- Ductile — tolerates forming and impact — 250%, better than 79% of polymer grades
About this powder
“Ideal for producing easy-to-process, flexible, and lightweight parts with enhanced rebound resilience and high part uniformity.” — HP, product description
- Manufacturer
- HP
- Product
- 3D High Reusability TPA (enabled by Evonik)
- Base polymer
- TPA (PEBA)
- Process
- Multi Jet Fusion (MJF)
- Printers
- HP Jet Fusion 4200 series
- As-printed colour
- White
- Build envelope
- 380 × 284 × 380 mm. Usable part size depends on orientation, spacing and process allowances.
- Build atmosphere
- No mandatory inert atmosphere recorded; follow the selected printer/material profile.
- Powder refresh
- 20 % fresh powder in the recorded recipe. Follow the manufacturer’s build and powder-management conditions.
- Manufacturer data source
- HP source reference (HP white paper, August 2021)
- FabDigit material reference
- Download reference PDF — FabDigit layout with HP data and source attribution.
- Ordering
- Specify this powder in your quote notes for an availability review.
HP positions it for winter sports equipment, car interiors, robotics and grippers, fluid systems and flexible functional parts.
Choosing 3D High Reusability TPA (enabled by Evonik)
A lightweight HP MJF thermoplastic polyamide elastomer for resilient parts that need rebound and uniformity rather than rigid-nylon behavior.
- Consider it for

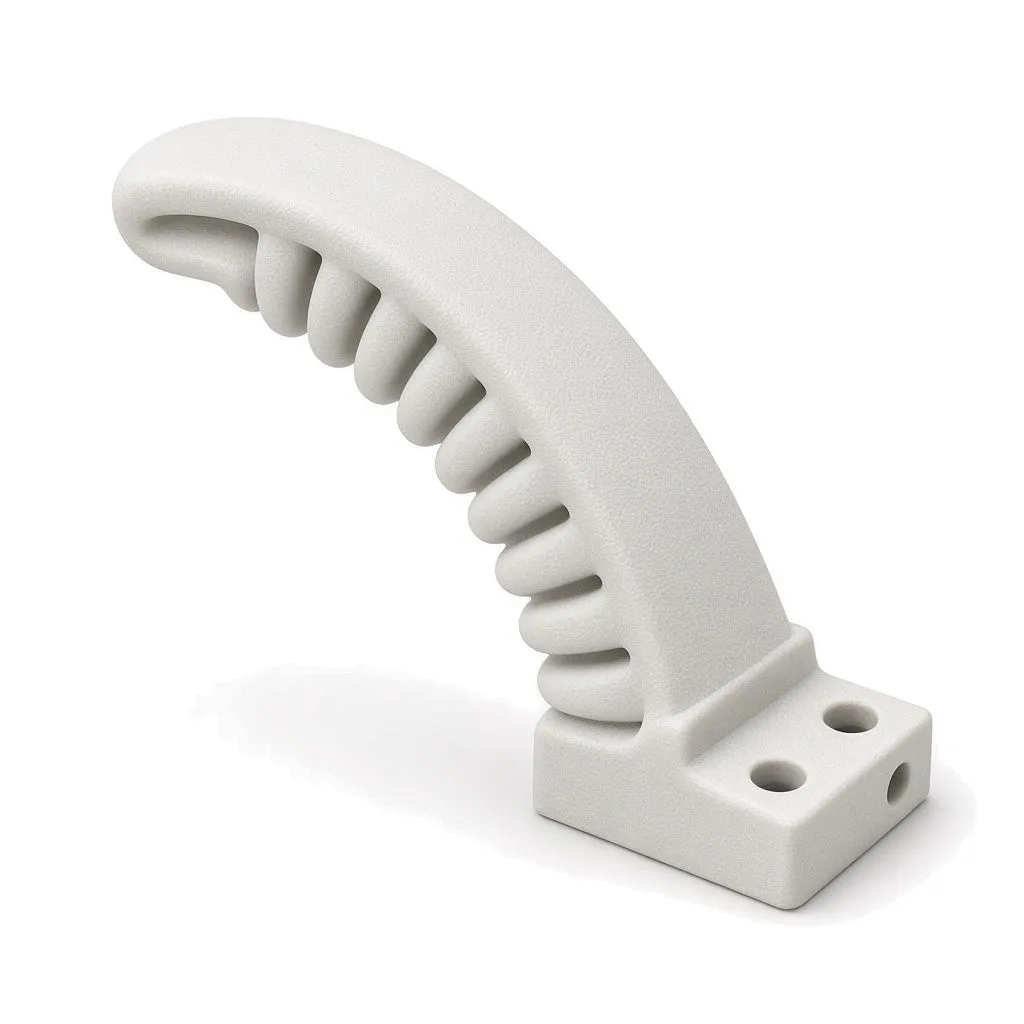

- Robotic grippers and compliant mechanisms · Winter-sports and automotive-interior components · Flexible fluid-system parts after media testing
- Tradeoffs
- TPA is a distinct polyamide elastomer and should not be treated as a generic TPU. HP lists it for the discontinued Jet Fusion 4200 family, so current production availability must be confirmed.
- Design and validation
- Validate wall or lattice geometry, rebound, compression set and the weak build direction under the actual cycling load. Confirm that the 4200 process route remains available before design freeze.
- Finishing
- White is the cataloged as-printed colour and the row is not offered as dyeable. Flexible coatings or cleaning steps must be tested for cracking, friction and media compatibility.
- Before choosing
- Is TPA rebound the real need, or is an MJF TPU hardness grade easier to source? Is a qualified Jet Fusion 4200 production route available?
Selection notes based on HP MJF materials portfolio. Published test results depend on the stated printer, orientation and conditioning. Compare material families · Choose a finishing route.
HP 3D High Reusability TPA (enabled by Evonik) properties
Typical values for HP 3D High Reusability TPA (enabled by Evonik) (HP white paper, August 2021); review each property’s test condition. Only this product’s reported properties are shown; unreported properties are omitted. Bars are the position among polymer grades.
Physical2
HP 3D High Reusability TPA (enabled by Evonik) has a density of 1 g/cm³ (0.0361 lb/in³), lighter than 73% of polymer grades.
per ASTM D792
per ASTM D3418; Powder melting point (DSC)
Mechanical6
HP 3D High Reusability TPA (enabled by Evonik) has a tensile strength of 10 MPa (1.45 ksi), weaker than 79% of polymer grades. Elongation at break is 250% and the elastic modulus is 0.075 GPa (0.0109 Msi).
per DIN 53504 / ISO 37; XY 10 / Z 8
per DIN 53504 / ISO 37; XY 0.075 / Z 0.080 GPa
per DIN 53504 / ISO 37; XY 250 / Z 120
per ASTM D624; XY 50 / Z 40
per DIN ISO 815; XY 40 / Z 40
per ASTM D2240; XY 91 / Z 91
Manufacturability2
per ASTM D3451
per ASTM D1895
Use published values for design screening. Confirm the grade, build direction, conditioning and available lot documentation when quoting.
HP 3D High Reusability TPA (enabled by Evonik) — frequently asked
What is HP 3D High Reusability TPA (enabled by Evonik) used for?
A lightweight HP MJF thermoplastic polyamide elastomer for resilient parts that need rebound and uniformity rather than rigid-nylon behavior. Consider it for robotic grippers and compliant mechanisms, winter-sports and automotive-interior components and flexible fluid-system parts after media testing. TPA is a distinct polyamide elastomer and should not be treated as a generic TPU. HP lists it for the discontinued Jet Fusion 4200 family, so current production availability must be confirmed.
What should I validate before using HP 3D High Reusability TPA (enabled by Evonik)?
Validate wall or lattice geometry, rebound, compression set and the weak build direction under the actual cycling load. Confirm that the 4200 process route remains available before design freeze. Is TPA rebound the real need, or is an MJF TPU hardness grade easier to source? Is a qualified Jet Fusion 4200 production route available?
How can HP 3D High Reusability TPA (enabled by Evonik) be finished?
White is the cataloged as-printed colour and the row is not offered as dyeable. Flexible coatings or cleaning steps must be tested for cracking, friction and media compatibility.
Sources
Product values come from the selected manufacturer source and are normalised for comparison. Confirm the quoted process, build direction, conditioning and available lot documentation for the finished part.
